DIN766 Link Chains
Our chain din 766 is a kind of short link chain made of high quality steel. The chain specifications comply with the requirements of DIN 766, the material is in line with DIN 17151. The chain din 766 is suitable for all general purposes, engineering, industrial and marine applications in conjunction with our range of mild steel accessories. We are able to customize chains and accessories according to your requirements.
All products are available with various protective finishes, such as zinc painted, self color, hot dip galvanized.
Please tell us your specific requirements, and we’ll give a satisfactory reply.
Features of Chain DIN 766
• General: not suitable for lifting purposes
• Material: steel DIN 17151
• Specification: DIN 766
• Finishes: self color, bright zinc painted, hot galvanized... Or as per customer’s request
• Packages: in bulk hanks, reels, bags...
Drawing of Chain DIN 766
Specifications of Chain DIN 766
| Size d mm | Inside Length t mm | Inside Width b1 mm | Outside Width b2 mm | Length L L=11 * t mm | Weight per 100m kg | Breaking Load kn |
| 2 | 12 | 3.5 | 7.5 | 132 | 0.07 | 1.25 |
| 3 | 16 | 4.2 | 11 | 176 | 0.16 | 4.00 |
| 4 | 16 | 5 | 13.7 | 176 | 0.32 | 8.00 |
| 5 | 18.5 | 6 | 17 | 203.5 | 0.5 | 12.50 |
| 6 | 18.5 | 7.2 | 20.2 | 203.5 | 0.8 | 16.00 |
| 7 | 22 | 8.4 | 23.8 | 242 | 1.1 | 25.00 |
| 8 | 24 | 9.6 | 27.2 | 264 | 1.4 | 32.00 |
| 9 | 27 | 10.8 | 30.6 | 297 | 1.8 | 40.00 |
| 10 | 28 | 12 | 34 | 308 | 2.2 | 50.00 |
| 11 | 31 | 13.2 | 37.4 | 341 | 2.7 | 63.00 |
| 12 | 36 | 14.4 | 40.8 | 396 | 3.1 | 72.40 |
| 13 | 36 | 15.6 | 44.2 | 396 | 3.8 | 80.00 |
| 14 | 41 | 16.8 | 47.6 | 451 | 4.4 | 100.00 |
| 16 | 45 | 19.2 | 54.4 | 495 | 5.7 | 125.00 |
| 18 | 50 | 21.6 | 61.2 | 550 | 7.3 | 160.00 |
| 19 | 53 | 22.8 | 64.6 | 583 | 7.97 | 180.00 |
| 20 | 56 | 24.0 | 68.0 | 616 | 9 | 200.00 |
| 22 | 62 | 26.4 | 75.0 | 682 | 11 | 243.00 |
| 23 | 64 | 27.6 | 78.2 | 704 | 12 | 250.00 |
| 26 | 73 | 31.2 | 88.4 | 803 | 15 | 320.00 |
| 28 | 78 | 33.8 | 95.2 | 858 | 18 | 400.00 |
| 30 | 84 | 41.0 | 102 | 924 | 19.5 | 450.00 |
| 32 | 90 | 43.0 | 108.8 | 990 | 23 | 500.00 |
Packing & Delivery
Product Tags:
|
|

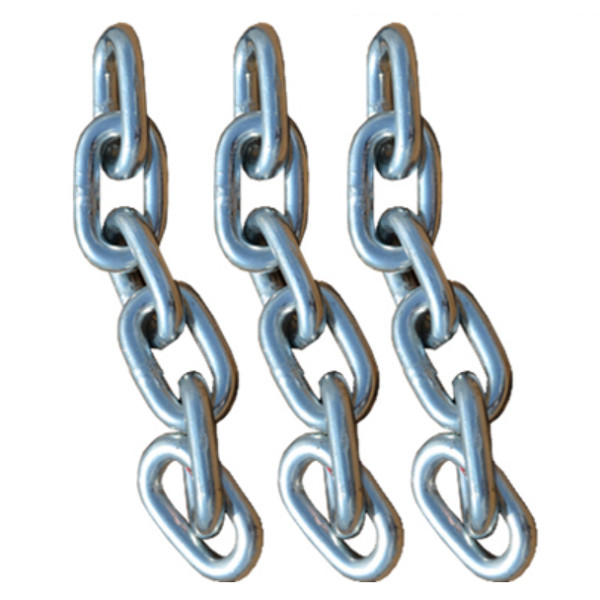

2mm To 32mm Round Steel Link Chain DIN766 Link Chain Images
|
