European Standard Short Link Chain
The European standard short link chain is a kind of welded short link chain used for lifting purposes. The chain meets European Standard EN 818. The chain is heat treated and complying with the general conditions of acceptance. We offer the range of nominal sizes of chain is from 4 mm to 45 mm. Besides the standard specifications, non-standard specifications also are available. The chain provided are produced by Chinese top factories, quality-guaranteed.
Excepting for the chain complying with EN 818-2, ASTM grade 80 chain, 100 chain available, too. Please contact us for more information about welded link chains.
Features of European Standard Short Link Chain (EN 818)
• Available grades: grade 2, 3, 5, 8
• Finishes: hot galvanized, paint, powder coating or as per customer’s request
• To meet the specifications of EN 818
• Available in gunny bag, drums, pails
• Application: for use in chain slings and for general lifting purposes
Specifications of European Standard Short Link Chain (EN 818-2)
| Dimensions in Millimeters |
| Nominal Size dn | Weld Diameter ds max | Pitch | Internal Width away from Weld w1 min | External Width over the Weld w2 max |
| Pn | P max | P min |
| 4 | 4.4 | 12 | 12.4 | 11.6 | 5.2 | 14.8 |
| 5 | 5.5 | 15 | 15.5 | 14.6 | 6.5 | 18.5 |
| 6 | 6.6 | 18 | 18.5 | 17.5 | 7.8 | 22.2 |
| 7 | 7.7 | 21 | 21.6 | 20.4 | 9.1 | 25.9 |
| 8 | 8.8 | 24 | 24.7 | 23.3 | 10.4 | 29.6 |
| 10 | 11 | 30 | 30.9 | 29.1 | 13 | 37 |
| 13 | 14.3 | 39 | 40.2 | 37.8 | 16.9 | 48.1 |
| 16 | 17.6 | 48 | 49.4 | 46.6 | 20.8 | 59.2 |
| 18 | 19.8 | 54 | 55.6 | 52.4 | 23.4 | 66.6 |
| 19 | 20.9 | 57 | 58.7 | 55.3 | 24.7 | 70.3 |
| 20 | 22 | 60 | 61.8 | 58.2 | 26 | 74 |
| 22 | 24.2 | 66 | 68 | 64 | 28.6 | 81.4 |
| 23 | 25.3 | 69 | 71.1 | 66.9 | 29.9 | 85.1 |
| 25 | 27.5 | 75 | 77.3 | 72.8 | 32.5 | 92.5 |
| 26 | 28.6 | 78 | 80.3 | 75.7 | 33.8 | 96.2 |
| 28 | 30.8 | 84 | 86.5 | 81.5 | 36.4 | 104 |
| 32 | 35.2 | 96 | 98.9 | 93.1 | 41.6 | 118 |
| 36 | 39.6 | 108 | 111 | 105 | 46.8 | 133 |
| 40 | 44 | 120 | 124 | 116 | 52 | 148 |
| 45 | 49.5 | 135 | 139 | 131 | 58.5 | 167 |
| Note | Pn -- nominal pitch Pmax -- maximum pitch of chain Pmin -- minimum pitch of chain |
Packing & Delivery
Product Tags:
|
|

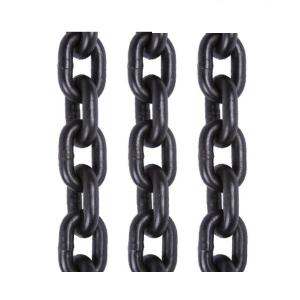

European Standard 6mm 8mm Short Link Chain Galvanised M4 - M45 Images
|
